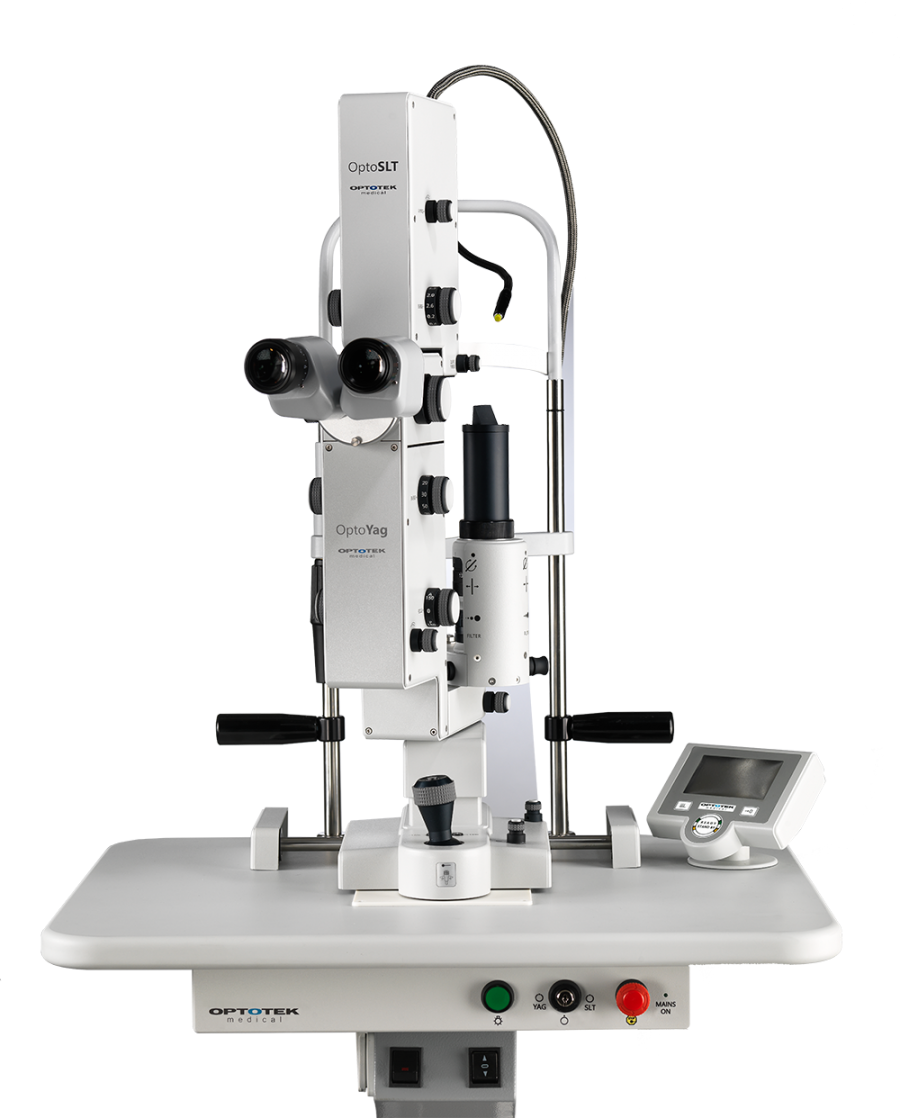

OPTOTEK MEDICAL - OptoYag M

$0.00

The OptoYag M utilizes a combination of latest innovations in Nd:YAG laser technology and highly efficient e-SlitLight™ LED slit lamp. Compact design, 30 energy levels in the range of 0.5 – 10 mJ, dual red aiming beam allowing precise focusing of the treatment beam, and built-in safety features guarantee the impeccable performance of the laser system. The OptoYag M is therefore a system of choice for fast, effective and safe capsulotomy and iridotomy procedures.

The OptoYag M utilizes a combination of latest innovations in Nd:YAG laser technology and highly efficient e-SlitLight™ LED slit lamp. Compact design, 30 energy levels in the range of 0.5 – 10 mJ, dual red aiming beam allowing precise focusing of the treatment beam, and built-in safety features guarantee the impeccable performance of the laser system. The OptoYag M is therefore a system of choice for fast, effective and safe capsulotomy and iridotomy procedures.




For any request on information or a quote, kindly fill out our contact form and our team will get back to you as soon as possible!


ENQUIRE NOW




PRODUCTS FEATURES

  • Bright, long-lasting LED light enhances color, contrast, and detail. Minimal heat ensures comfort, even for dry eye patients.

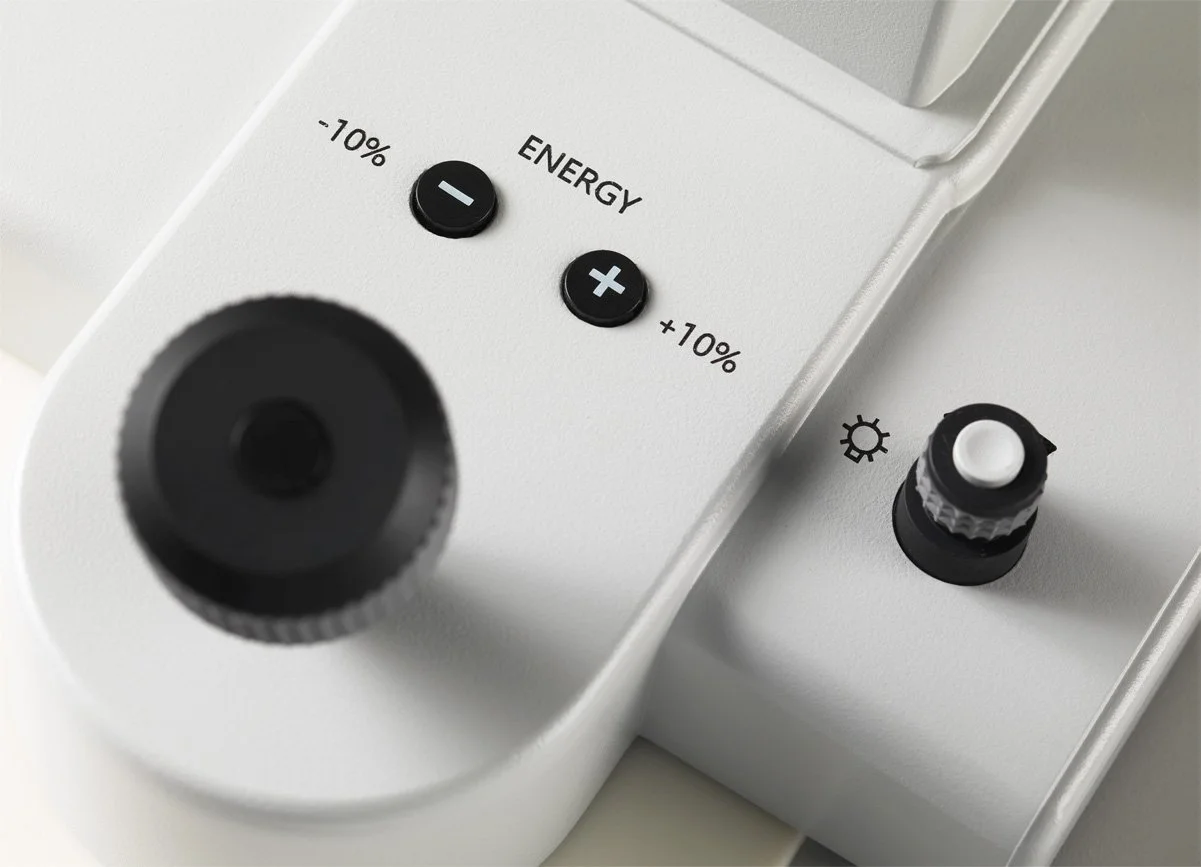

  • 30-step energy control next to the joystick for precise adjustment based on each patient's response—ideal for high-precision photodisruption.

  • Delivers consistent, stable energy for maximum safety and effective treatment, exceeding industry standards.

  • Fast laser repetition rate boosts treatment efficiency and improves patient comfort.

  • Compact design with integrated electronics under the table allows for quick setup and easy relocation.





SPECIFICATIONS PRODUCT

    • Type: Q-switched Nd:YAG

    • Wavelength: 1064 nm

    • Energy: 0.5 – 10 mJ (30 steps)

    • Spot Size: < 10 µm

    • Pulse Duration: 4 ns

    • Repetition Rate: up to 3 Hz (Burst: 1–3 pulses)

    • Offset: 150 µm anterior / 0 / 150–300 µm posterior

    • Aiming Beam: Dual red diode (650 nm, adjustable)

    • Trigger: Joystick (optional footswitch)

    • Cooling: Air convection

    • Type: e-SlitLight™

    • Illumination: White LED

    • Magnification: 10x, 16x, 25x (optional: 6x–40x)

    • Table Type: Central mounted

    • Table Size: 600 x 480 mm

    • Laser Unit Size: 125 x 257 x 68 mm

    • Total Height: 650 mm

    • Net Weight: 21 kg

    • Voltage: 100–240 V, 50–60 Hz

    • Power: Max 1.1 A
